Specification:

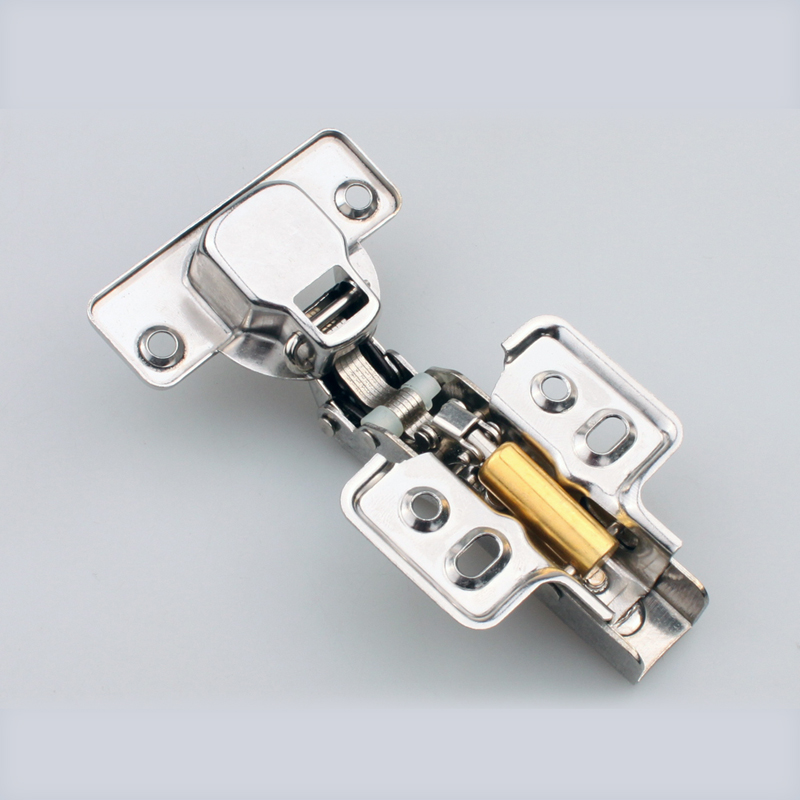

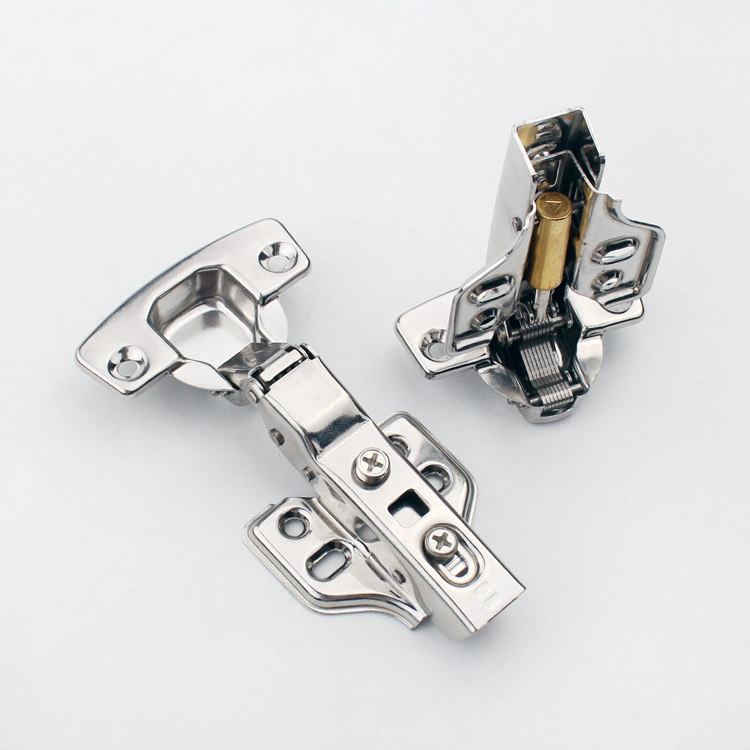

Product name: SS soft closing hydraulic cabinet hinge

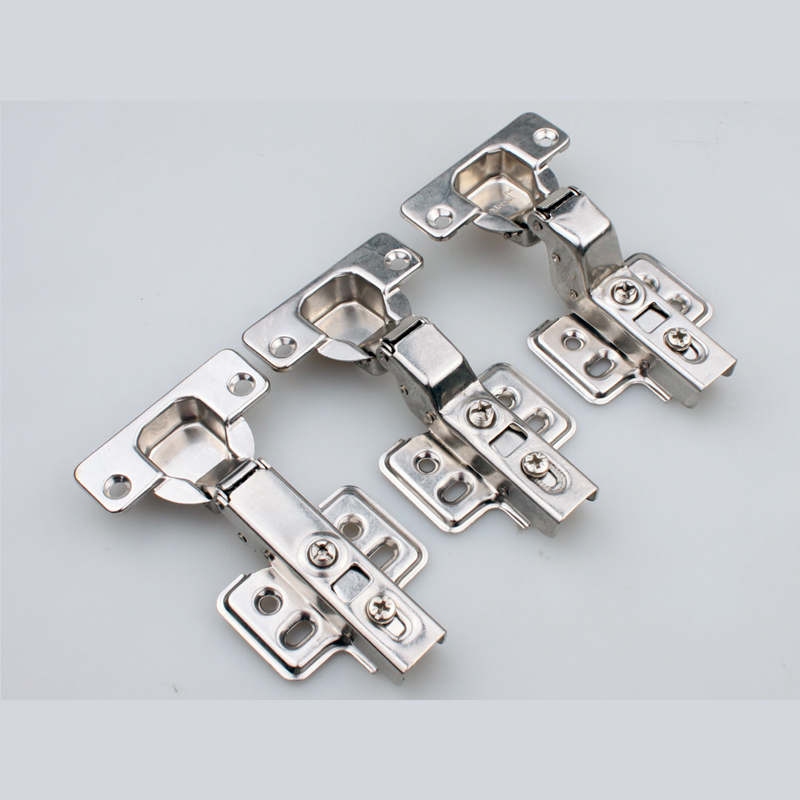

Size: full overlay , half overlay , insert

Material for main parts : Stainless steel

Material for screws and pin : Cold rolled steel

Finish : High quality polishing

Thickness: :1.2mm

Cup dimater : 35mm

Open angle: 90-105

Weight: 80gram(±2g)

Door thickness: 14mm-18mm

OEM Technical support: welcome

Installation: slide on system

Life cycle test: More then 50,000 times

Salt spray test : More then 48 hours

Optional Accessories : cup cover / arm cover / screws

Advantages

1. Mingyi hardware uses automatic  punching machine and automatic assembly. Quality will be more stable

2. Use good shanghai materila and high qulity polish to advoide rust

3.  ALL screws are have heat  treatment to extend using time

4.  Salt spray test :  more then 48 hour

5. Open-close test: more then 50000 times

Hinge model

Package& Shipment

Package: Provide OEM packing :  bulk packing  , poly bag packing and box packing  or according customer's requirement

Shipment: ship to all the countries around the world via Express,Sea and Air.

Production Process

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
